[Rust] ONNX모델로 detection

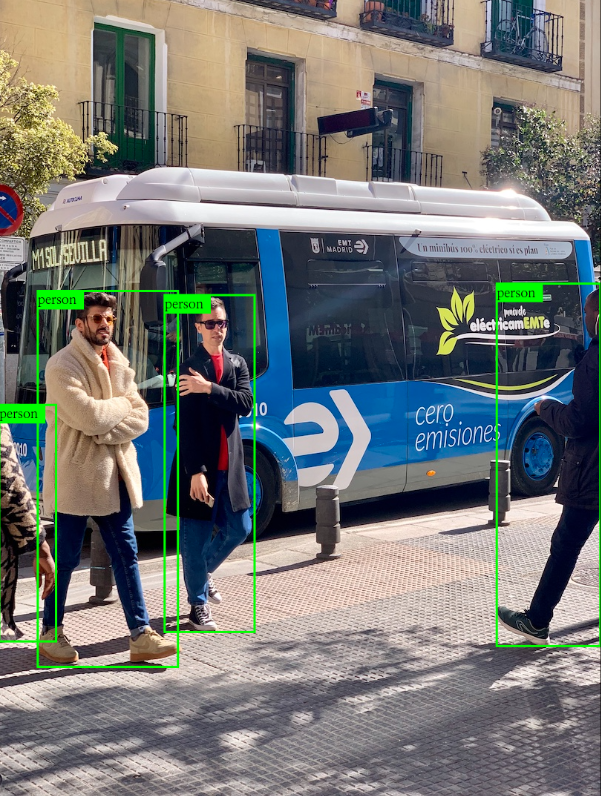

웹상에서 이미지 load하면 해당 이미지를 onnx모델로 run하고 웹상으로 띄어줍니다.



use std::{sync::Arc, path::Path};
use image::{GenericImageView, imageops::FilterType};
use ndarray::{Array, IxDyn, s, Axis};
use ort::{Environment,SessionBuilder,tensor::InputTensor};
use rocket::{response::content,fs::TempFile,form::Form};
use video_rs::{self, Decoder, Locator};
use std::path::PathBuf;
use video_rs::{Encoder, EncoderSettings, Time};

#[macro_use] extern crate rocket;

#[rocket::main]
async fn main() {
    rocket::build()
        .mount("/", routes![index])
        .mount("/detect", routes![detect])
        .launch().await.unwrap();
}

#[get("/")]
fn index() -> content::RawHtml<String> {
    content::RawHtml(std::fs::read_to_string("index.html").unwrap())
}

#[post("/", data = "<file>")]
fn detect(file: Form<TempFile<'_>>) -> String {
    let buf = std::fs::read(file.path().unwrap_or(Path::new(""))).unwrap_or(vec![]);
    let boxes = detect_objects_on_image(buf);
    return serde_json::to_string(&boxes).unwrap_or_default()
}

fn detect_objects_on_image(buf: Vec<u8>) -> Vec<(f32,f32,f32,f32,&'static str,f32)> {
    let (input,img_width,img_height) = prepare_input(buf);
    let output = run_model(input);
    return process_output(output, img_width, img_height);
}

fn prepare_input(buf: Vec<u8>) -> (Array<f32,IxDyn>, u32, u32) {
    let img = image::load_from_memory(&buf).unwrap();
    let (img_width, img_height) = (img.width(), img.height());
    let img = img.resize_exact(640, 640, FilterType::CatmullRom);
    let mut input = Array::zeros((1, 3, 640, 640)).into_dyn();
    for pixel in img.pixels() {
        let x = pixel.0 as usize;
        let y = pixel.1 as usize;
        let [r,g,b,_] = pixel.2.0;
        input[[0, 0, y, x]] = (r as f32) / 255.0;
        input[[0, 1, y, x]] = (g as f32) / 255.0;
        input[[0, 2, y, x]] = (b as f32) / 255.0;
    };
    return (input, img_width, img_height);
}

fn run_model(input:Array<f32,IxDyn>) -> Array<f32,IxDyn> {
    let input = InputTensor::FloatTensor(input);
    let env = Arc::new(Environment::builder().with_name("YOLOv8").build().unwrap());
    let model = SessionBuilder::new(&env).unwrap().with_model_from_file("yolov8n.onnx").unwrap();
    let outputs = model.run([input]).unwrap();
    let output = outputs.get(0).unwrap().try_extract::<f32>().unwrap().view().t().into_owned();
    return output;
}

fn process_output(output:Array<f32,IxDyn>,img_width: u32, img_height: u32) -> Vec<(f32,f32,f32,f32,&'static str, f32)> {
    let mut boxes = Vec::new();
    let output = output.slice(s![..,..,0]);
    for row in output.axis_iter(Axis(0)) {
        let row:Vec<_> = row.iter().map(|x| *x).collect();
        let (class_id, prob) = row.iter().skip(4).enumerate()
            .map(|(index,value)| (index,*value))
            .reduce(|accum, row| if row.1>accum.1 { row } else {accum}).unwrap();
        if class_id != 0 {
            continue
        }
        if prob < 0.5 {
            continue
        }
        let label = YOLO_CLASSES[class_id];
        let xc = row[0]/640.0*(img_width as f32);
        let yc = row[1]/640.0*(img_height as f32);
        let w = row[2]/640.0*(img_width as f32);
        let h = row[3]/640.0*(img_height as f32);
        let x1 = xc - w/2.0;
        let x2 = xc + w/2.0;
        let y1 = yc - h/2.0;
        let y2 = yc + h/2.0;
        boxes.push((x1,y1,x2,y2,label,prob));
    }

    boxes.sort_by(|box1,box2| box2.5.total_cmp(&box1.5));
    let mut result = Vec::new();
    while boxes.len()>0 {
        result.push(boxes[0]);
        boxes = boxes.iter().filter(|box1| iou(&boxes[0],box1) < 0.7).map(|x| *x).collect()
    }
    return result;
}

fn iou(box1: &(f32, f32, f32, f32, &'static str, f32), box2: &(f32, f32, f32, f32, &'static str, f32)) -> f32 {
    return intersection(box1, box2) / union(box1, box2);
}

fn union(box1: &(f32, f32, f32, f32, &'static str, f32), box2: &(f32, f32, f32, f32, &'static str, f32)) -> f32 {
    let (box1_x1,box1_y1,box1_x2,box1_y2,_,_) = *box1;
    let (box2_x1,box2_y1,box2_x2,box2_y2,_,_) = *box2;
    let box1_area = (box1_x2-box1_x1)*(box1_y2-box1_y1);
    let box2_area = (box2_x2-box2_x1)*(box2_y2-box2_y1);
    return box1_area + box2_area - intersection(box1, box2);
}

fn intersection(box1: &(f32, f32, f32, f32, &'static str, f32), box2: &(f32, f32, f32, f32, &'static str, f32)) -> f32 {
    let (box1_x1,box1_y1,box1_x2,box1_y2,_,_) = *box1;
    let (box2_x1,box2_y1,box2_x2,box2_y2,_,_) = *box2;
    let x1 = box1_x1.max(box2_x1);
    let y1 = box1_y1.max(box2_y1);
    let x2 = box1_x2.min(box2_x2);
    let y2 = box1_y2.min(box2_y2);
    return (x2-x1)*(y2-y1);
}

const YOLO_CLASSES:[&str;80] = [
    "person", "bicycle", "car", "motorcycle", "airplane", "bus", "train", "truck", "boat",
    "traffic light", "fire hydrant", "stop sign", "parking meter", "bench", "bird", "cat", "dog", "horse",
    "sheep", "cow", "elephant", "bear", "zebra", "giraffe", "backpack", "umbrella", "handbag", "tie",
    "suitcase", "frisbee", "skis", "snowboard", "sports ball", "kite", "baseball bat", "baseball glove",
    "skateboard", "surfboard", "tennis racket", "bottle", "wine glass", "cup", "fork", "knife", "spoon",
    "bowl", "banana", "apple", "sandwich", "orange", "broccoli", "carrot", "hot dog", "pizza", "donut",
    "cake", "chair", "couch", "potted plant", "bed", "dining table", "toilet", "tv", "laptop", "mouse",
    "remote", "keyboard", "cell phone", "microwave", "oven", "toaster", "sink", "refrigerator", "book",
    "clock", "vase", "scissors", "teddy bear", "hair drier", "toothbrush"
];
